MHC 1100F/1300F/1350F/1500F/1650F/1900F
Automatic Die Cutting & Creasing Machine (Lead Edge Feeder)

Features Introduction

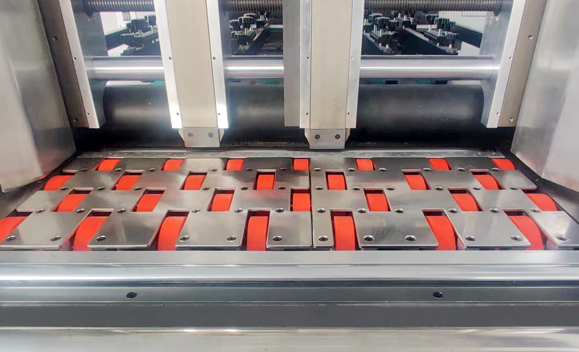

Lead edge feeder

● Top gear and precise Lead Edge Feeder design, allowed consistent feeding with various quality corrugated board.
● New technology polyurethane wheel surface with grid lifter and air cushion ensure smooth feeding and accurate alignment even warped board.

● Fine vacuum suction adjustment through inverter adapts to wide range stock from f flute to double wall corrugate.

Sheet transmission and alignment section

● Selectable left and right side push lays to ensure accurate alignment.
● Advanced non-stop adjustment of feeding timing, reduce down time.
● Front gauge non-stop back and forth adjustable to accommodate variation in gripper margin.

Timing belt drive, Intermittent mechanism

High-precision imported intermittent splitter, capable of maintaining high positioning accuracy even after long-term use.

Non-stop roll-up curtain type paper delivery device

Roll-up type auxiliary paper collection rack, which can realize non-stop paper collection. Delivery unit is also equipped with two-way auxiliary blower for paper collecting, with manual sampling mechanism which is easy to operate.

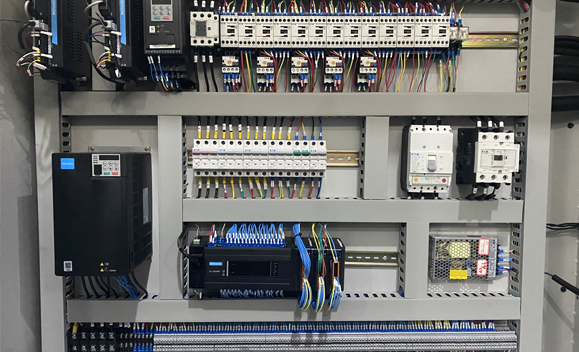

Electrical unit

Adopts electrical components of world famous brands(MOELLER\OMRON) for better performance and in time and local after-sale-service and maintenance.

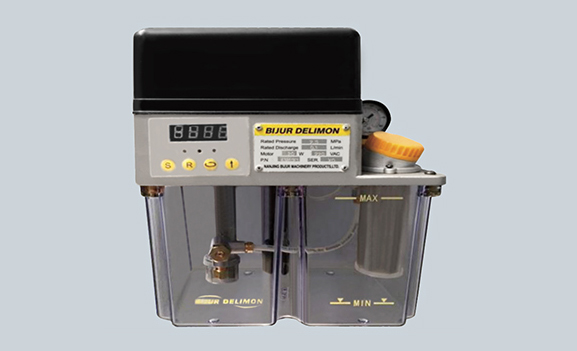

Auto lubrication system

The whole machine adopts a centralized automatic oil supply system to ensure that the transmission parts are not short of oil.

Configurations

Conveying Unit	MHC-1100F/1300F/1350F/1500F/1650F/1900F
01. High-speed and precise lead edge feeder with high feeding accuracy, strong suction power, anti-slip performance, and stable transportation for various types of corrugated board	〇
02. New technology polyester wheels with grid lifter and air cushion ensure smooth feeding and accurate alignment even when dealing with warped board	〇
03. Fine vacuum suction adjustment through inverter adapts to wide range stock from F flute to five-layer corrugate paper	〇
04. Electric side pushing baffles (both the left and right sides)	〇
05. The left and right baffle can be adjusted either independently or synchronously. The slanted front baffle can be fine-adjusted in both forward/backward and upward/downward directions, reducing pressure of the paper under the paper pile for smoother feeding	〇
06. Right and left side positioning push gauge to ensure precise side positioning of the cardboard	〇
07. The pallet height can be adjusted according to the paper quality and thickness, making the paper feeding smoother and more stable	〇
08. The fine-tuning device for the front baffle’s front and rear positions can be finely adjusted according to the gripper margin size	〇
09. Non-stop adjusting device for feeding step	〇
Die-cutting Unit
01. The entire machine casting is made of QT-700-2 nodular cast iron	〇
02. Imported worm gear, worm gear and 40cr crankshaft	〇
03. A complete set of imported anodized aluminum alloy gripper bars and positioning structure, fine steel gripper teeth and supporting gripper plates. The gripper bars adopt an adjustable gripper bar structure	〇
04. Imported main drive chain	〇
05. Imported intermittent splitter	〇
06. Imported synchronous belt and pulley drive	〇
07. Imported pneumatic clutch brake device	〇
08. Pressure regulating device, which can realize accurate control of pressure through PLC touch screen buttons	〇
09. Die-cutting pressure is measured directly and accurately by deformation measuring device and displayed on the human-machine interface	〇
10. Die-cutting base plate and die mould rotary device	〇
11. The connection between the die cutting plate and the chase adopts the form of grasping snail and screws, adopt central positioning system, which is fast and accurate	〇
12. The die-cutting chase and the lower mat are locked by the Japan SMC gas regulator, which can prevent improper locking of the upper frame caused by human error during installation	〇
13. Japan SMC air pressure detection device, low air pressure alarm	〇
14. Equipped with an air storage tank to ensure the stability of the air pressure of the whole machine	〇
15. The whole machine adopts a centralized automatic oil supply system to ensure that the transmission parts are not short of oil	〇
Delivery Unit
01. Roll-up curtain type auxiliary paper delivery device, can realize non-stop paper delivery	〇
02. High pile stacking table adopts lifting device, paper delivery structure can pull the whole pile of paper out of the machine.(Special for high pile stacking delivery)	〇
03. Paper delivery alignment device	〇
04. Photoelectric detection of upper and lower limit switches can effectively prevent the paper stacking table from excessive paper pile stacking and paper curling up	〇
05. Spring chain adjustment device: Adjusting the tension of spring chain can reduce the inertia impact during the steerings of the gripper bar, and maintain the balanced tension of the chain	〇
Electrical Parts
01. Self-developed PLC control system(Invention Patent)	〇
02. The die-cutting unit adopts 10.4-inch touch display screens	〇
03. The machine adopts Germany Moeller brand relays, AC contactors, air switches and buttons, to ensure the stability and reliability of electrical parts	〇
04. The machine adopts Japanese Omron brand photoelectric switch, optical fiber, encoder and sensor, to ensure the accuracy and stability of electrical detection of each part of the action	〇

Note: This allocation sheet is for reference only, the formal allocation sheet is subject to the contract. Standard configuration: 〇; Optional: △

Main Technical Parameter

Model	MHC-1100F	MHC-1300F	MHC-1350F	MHC-1500F	MHC-1650F	MHC-1900F
Max. Sheet Size	1100×790mm	1290×940mm	1350×1100mm	1500×1100mm	1650×1200mm	1900×1400mm
Min. Sheet Size	470×450mm	470×450mm	470×450mm	470×450mm	550×500mm	650×550mm
Max. Cutting Size	1070×770mm	1280×920mm	1330×1080mm	1480×1080mm	1620×1180mm	1870×1380mm
Min. Gripper Waste	9-17mm	9-17mm	9-17mm	9-17mm	9-17mm	9-17mm
Cutting Rule Height	23.8mm	23.8mm	23.8mm	23.8mm	23.8mm	23.8mm
Inner Chase Size	1100×790mm	1310×950mm	1390×1120mm	1510×1120mm	1682×1220mm	1912×1420mm
Stock Range	Corrugated board: ≤7mm, E, B, C, A and AB corrugated paper	Corrugated board: ≤8.5mm, E, B, C, A and AB corrugated paper	Corrugated board: ≤8.5mm, E, B, C, A and AB corrugated paper	Corrugated board: ≤8.5mm, E, B, C, A and AB corrugated paper	Corrugated board: ≤8.5mm, E, B, C, A and AB corrugated paper	Corrugated board: ≤8.5mm, E, B, C, A and AB corrugated paper
Die Cutting Accuracy	≤±0.1mm	≤±0.15mm	≤±0.15mm	≤±0.15mm	≤±0.2mm	≤±0.2mm
Max. Die Cutting Force	300T	400T	400T	400T	400T	450T
Max. Working Speed	7500s/h	5500s/h	5500s/h	5500s/h	4500s/h	4000s/h
Max. Delivery Pile Height	1400mm (With pallet)	1400mm (With pallet)	1400mm (With pallet)	1400mm (With pallet)	1400mm (With pallet)	1500mm (With pallet)
Main Motor Power	11KW	11KW	15KW	15KW	18.5KW	18.5KW
Full Load Wattage	22KW	22KW	26KW	26KW	30KW	30KW
Air Requirement	Pressure: 0.6-0.7Mpa, Flow: ≥0.37m³/min	Pressure: 0.6-0.7Mpa, Flow: ≥0.37m³/min	Pressure: 0.6-0.7Mpa, Flow: ≥0.37m³/min	Pressure: 0.6-0.7Mpa, Flow: ≥0.37m³/min	Pressure: 0.6-0.7Mpa, Flow: ≥0.75m³/min	Pressure: 0.6-0.7Mpa, Flow: ≥0.75m³/min
Machine Weight	17T	19T	21T	22T	24T	30T

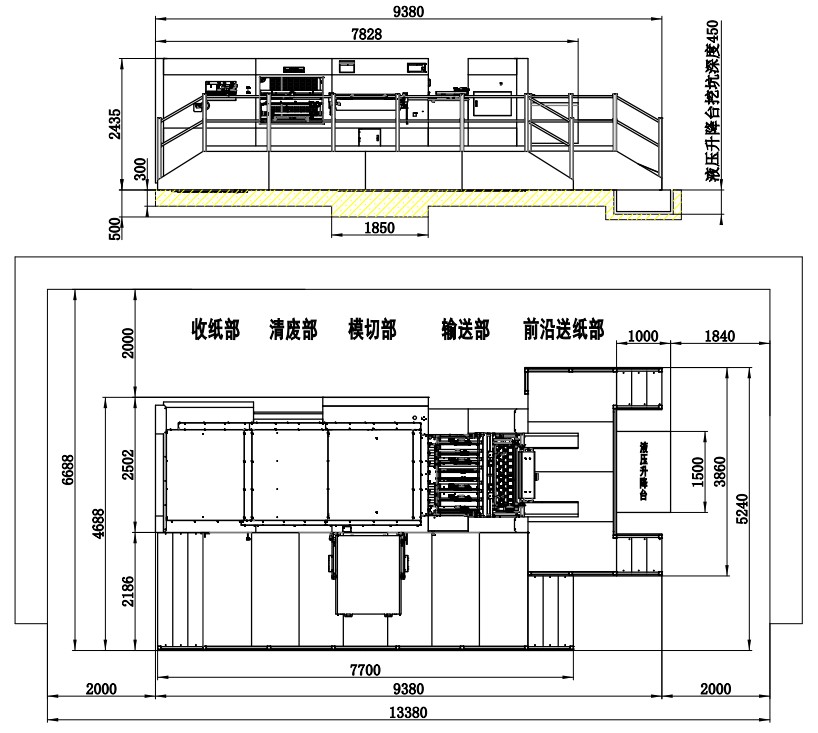

Machine Dimension	6780×4500×2350mm (L: paper prepared track included, W: platform included)	7740×5240×2467mm (L: paper prepared track included, W: platform included)	7969×5240×2435mm (L: paper prepared track included, W: platform included)	7969×5240×2452mm (L: paper prepared track included, W: platform included)	8417×5580×2582mm (L: paper prepared track included, W: platform included)	8900×6260×2525mm (L: paper prepared track included, W: platform included)
